HYCHIKA Green Self-Leveling Cross Line Laser Level with Tripod
HYCHIKA Green Self-Leveling Cross Line Laser Level 15m with Tripod
The HYCHIKA Green Self-Leveling Cross Line Laser Level is designed for accurate horizontal and vertical alignment during home improvement, renovation, tiling, cabinet installation, picture hanging and construction layout tasks. With a bright green laser beam, self-leveling mode, manual mode, adjustable brightness and a sturdy tripod, this laser level tool helps improve accuracy and working efficiency for indoor and outdoor projects.
Whether you need a cross line laser level for wall tiles, a green laser level for picture hanging, or a laser level with tripod for renovation work, this HYCHIKA laser level provides clear visibility, simple operation and flexible positioning for common measuring and alignment tasks.
Key Features
- Green Cross Line Laser Level: Projects clear horizontal and vertical green laser lines for accurate alignment, leveling and layout work.
- Self-Leveling Mode: Automatically levels within ±4° when unlocked. If the tool is outside the leveling range, the laser line flashes as a warning.
- Manual Mode: Locks the pendulum for manual angle adjustment, making it suitable for sloped lines, non-standard layouts and creative installation tasks.

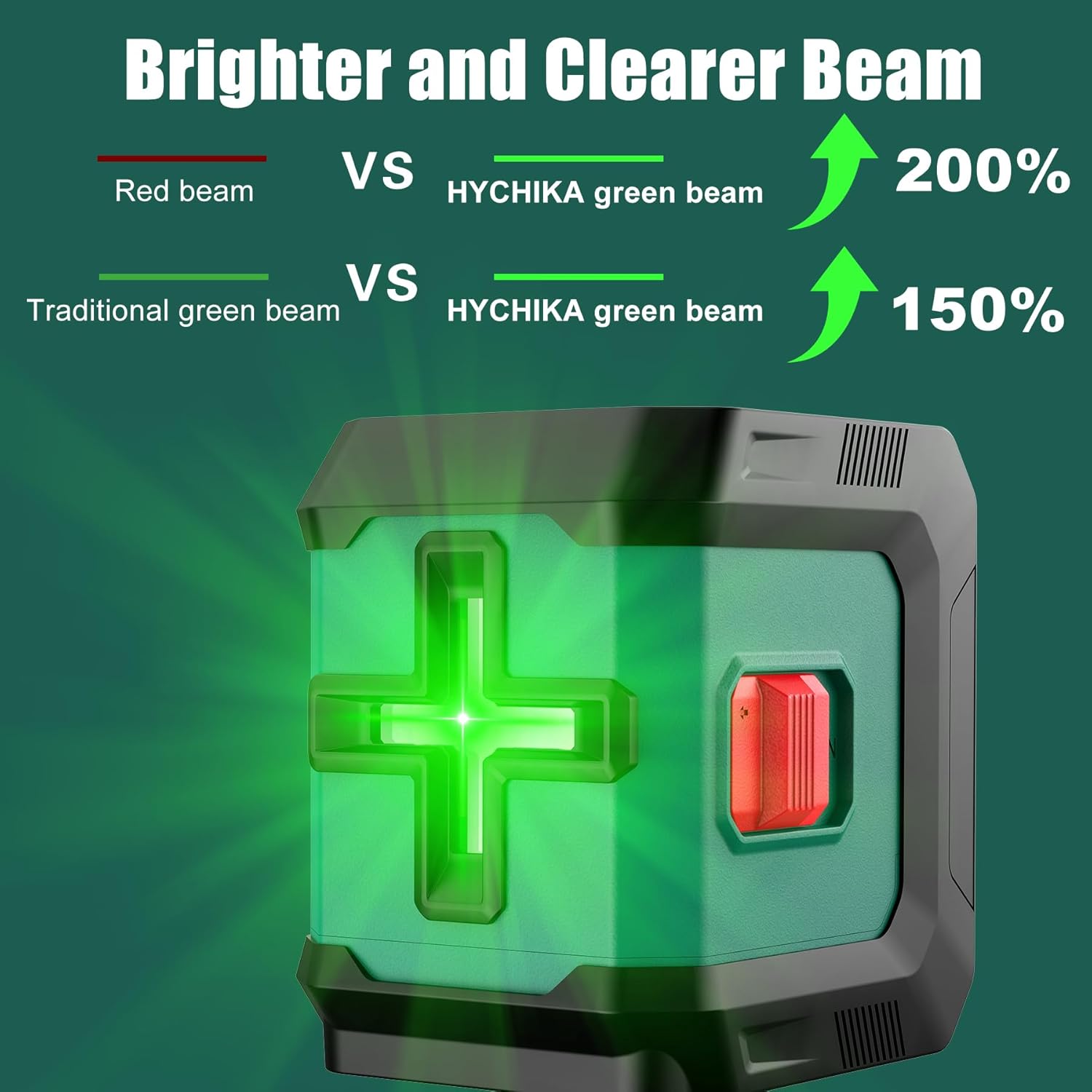

- High Visibility Green Laser: Green laser beam provides improved visibility compared with a red beam, making it easier to see during alignment work.
- 15m Working Range: Suitable for common indoor and outdoor measuring, leveling and home improvement applications.

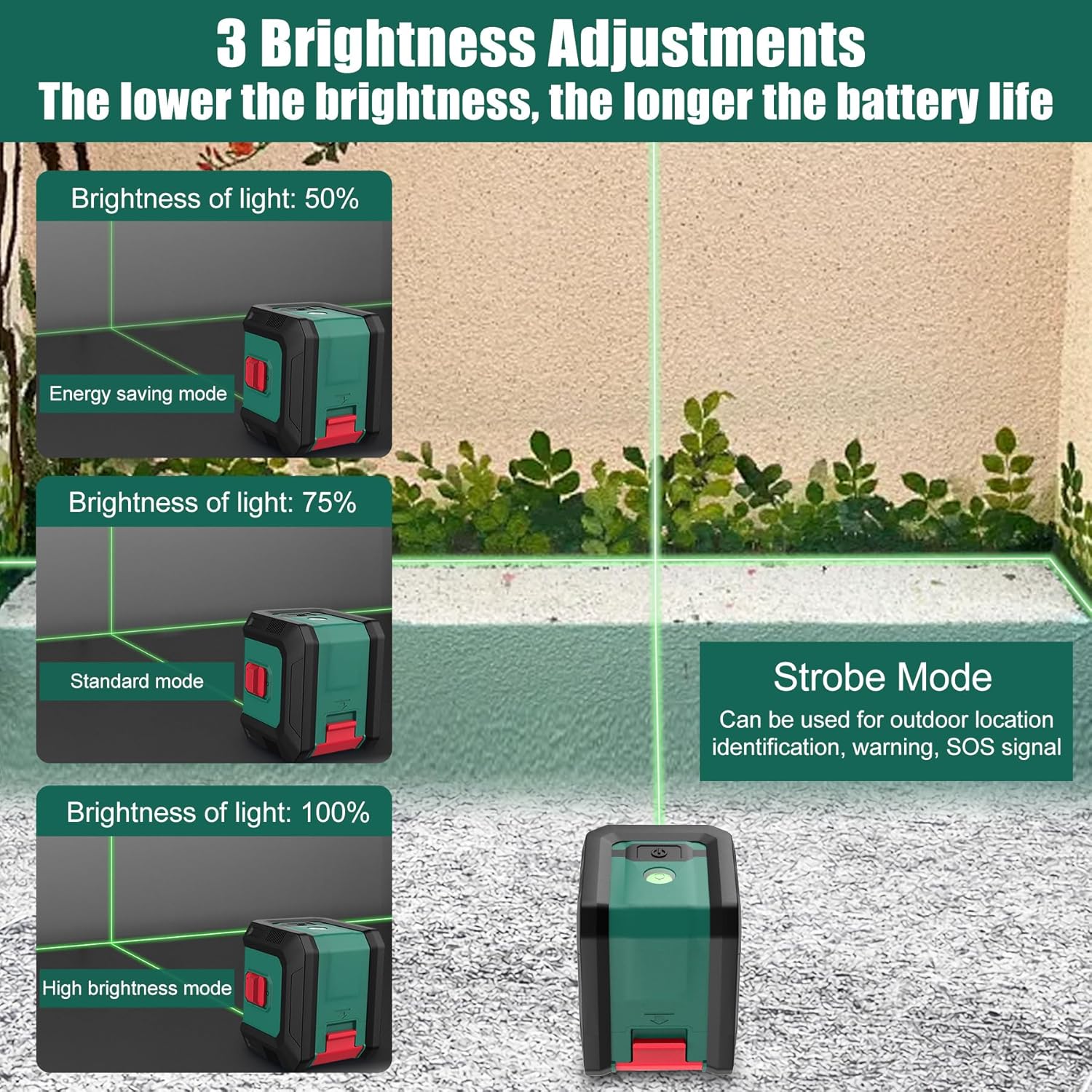

- Brightness Adjustment: Adjustable brightness helps match the laser output to different working environments and lighting conditions.
- Tripod Included: Comes with a sturdy adjustable tripod, extending from 9 inches to 25.6 inches for flexible working heights.
- 360-Degree Swivel Positioning: Tripod swivel function supports rotation, tilt and portrait or landscape positioning for different working angles.
- IP54 Dust and Water Resistance: Designed for use in typical indoor and outdoor jobsite environments.
- Easy One-Button Operation: Simple design makes the laser level easy to use for both DIY users and experienced workers.
Specifications
| Product Type | Green Cross Line Laser Level / Self-Leveling Laser Level |
| Laser Type | Green laser |
| Laser Lines | Horizontal and vertical cross line laser |
| Working Range | Up to 15m / 50ft |
| Self-Leveling Range | ±4° |
| Accuracy | ±1/10 in at 8 ft |
| Brightness | Adjustable brightness |
| Modes | Self-leveling mode and manual mode |
| Tripod Height | Adjustable from 9 inches to 25.6 inches |
| Protection Rating | IP54 dust and water resistance |
| Laser Class | Class II, <1mW power output |
| Power Supply | 2 × AA batteries |

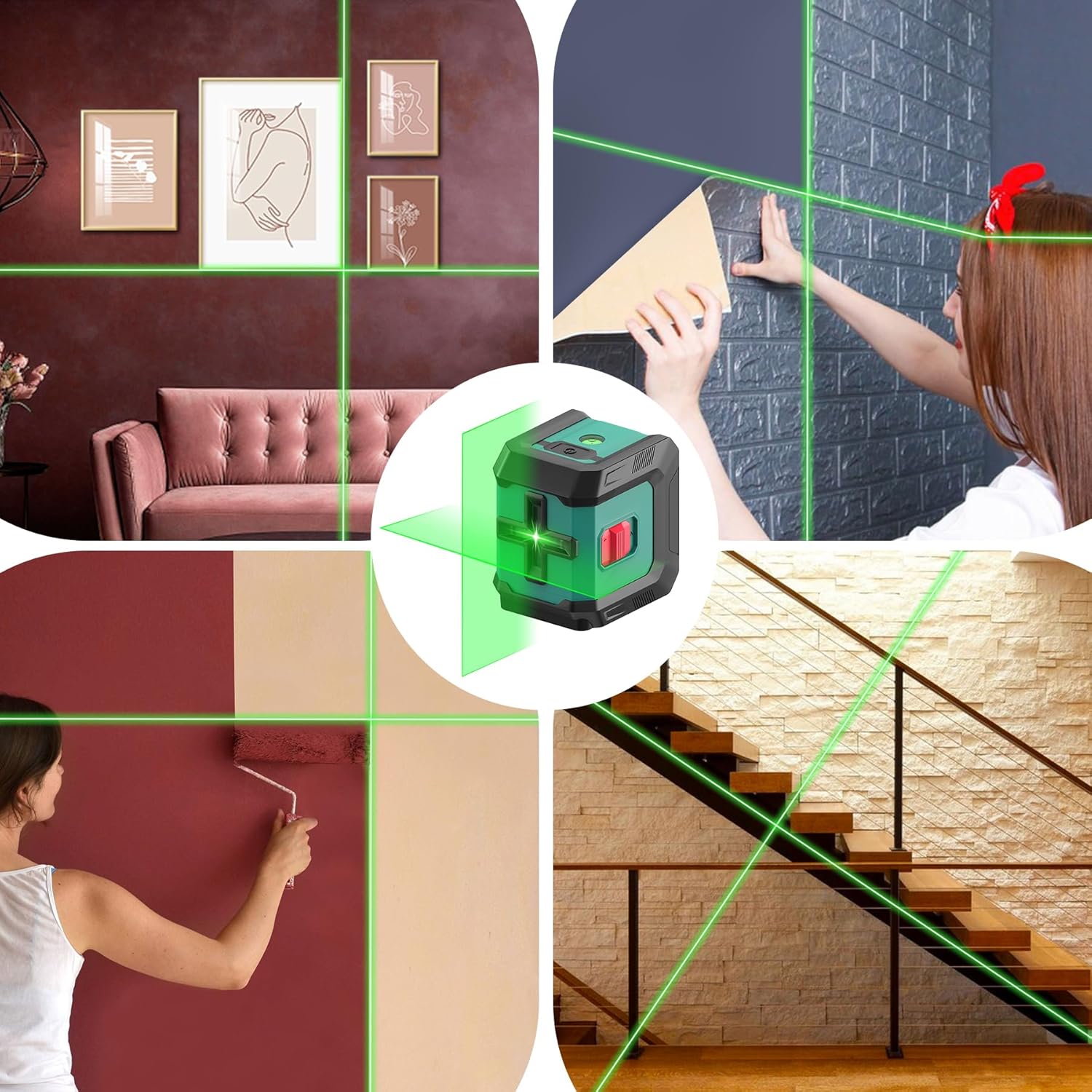

Suitable Applications
- Picture hanging
- Wall tile installation
- Floor tile layout
- Cabinet installation
- Wall stickers and decoration alignment
- Ceiling decoration
- Door and window alignment
- Home renovation and DIY projects
- Construction and layout work

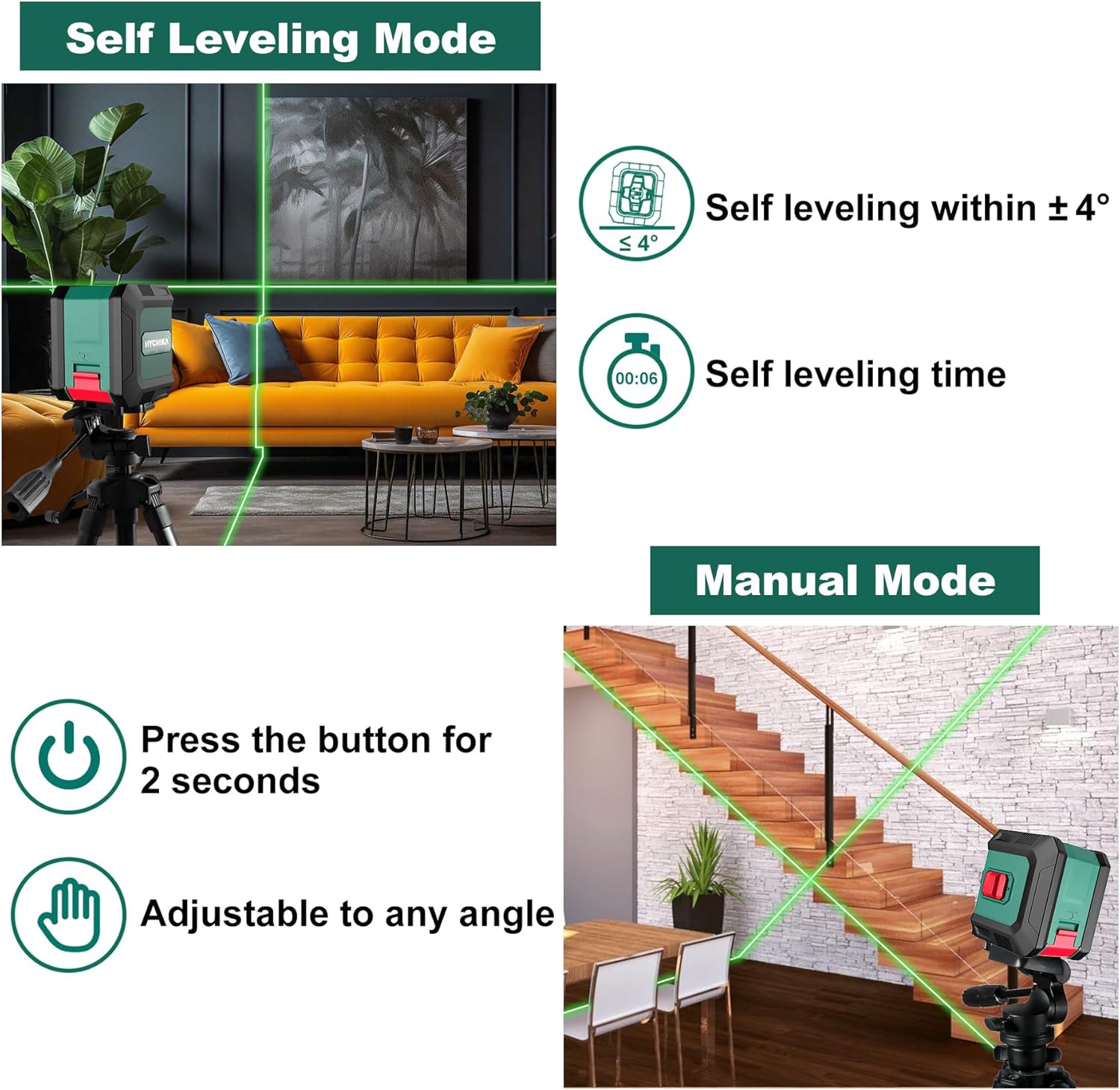

Self-Leveling and Manual Modes
In self-leveling mode, the laser level automatically adjusts within ±4° when the pendulum is unlocked. If the unit is outside the leveling range, the laser flashes to remind you to reposition the tool. In manual mode, the pendulum is locked, allowing the laser line to be projected at a chosen angle for sloped or non-standard applications.
Tripod and Positioning
The included tripod provides stable support for different working heights and angles. Its adjustable legs extend from 9 inches to 25.6 inches, while the quick release plate helps you mount and remove the laser level quickly. The 360-degree swivel design supports flexible positioning for portrait, landscape and angled layout tasks.
Package Includes
- 1 × HYCHIKA Green Cross Line Laser Level
- 2 × AA Batteries
- 1 × 25.6 Inch Adjustable Tripod
- 1 × Green Laser Target Plate
- 1 × User Manual
- 1 × Fabric Carrying Bag
Important Notes
- Do not stare directly into the laser beam.
- Keep the laser tool away from children.
- Use the laser target plate to improve visibility in brighter environments.
- Make sure the surface is within the self-leveling range before use.
- Remove the batteries if the laser level will not be used for a long time.
FAQ
What is this green laser level suitable for?
This green laser level is suitable for picture hanging, wall tiles, floor tiles, cabinets, ceiling decoration, home renovation and construction alignment tasks.
Does this laser level self-level automatically?
Yes. In self-leveling mode, it automatically levels within ±4°. If it is outside the leveling range, the laser line flashes as a warning.
Can I use this laser level at an angle?
Yes. Manual mode locks the pendulum, allowing you to project laser lines at custom angles for sloped surfaces or non-standard applications.
Does it include a tripod?
Yes. The package includes an adjustable tripod that extends from 9 inches to 25.6 inches.
Is this laser level suitable for hanging pictures?
Yes. The cross line laser helps align picture frames, wall decorations, shelves and other home improvement projects accurately.
